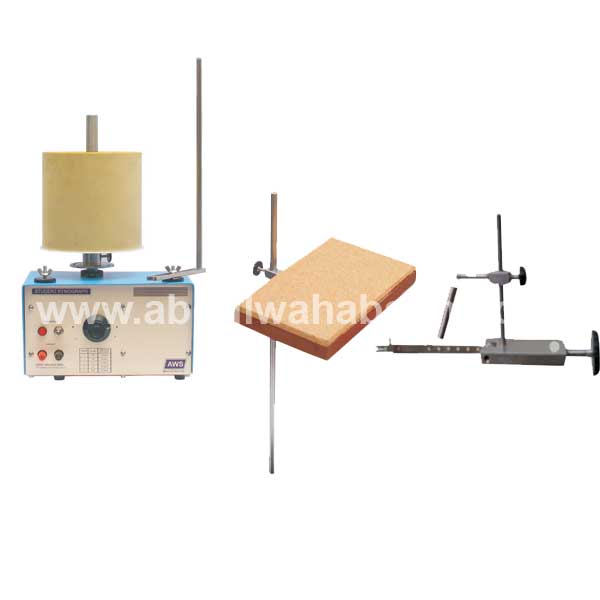

Basic Kymograph

The AWS Student Kymograph is designed for general experimental work, and is solidly built to with stand constant, hard laboratory use. The AC operated motor turns the spindle at five fixed speeds, from “muscle twitch” of 625mm per second down to 0.05mm per second.

Speeds: A dial on the front panel sets the gear box to one of five speeds. A “neutral” position, marked by an indicating dot between each of the speeds, protects the gear box. Using a cylinder 150mm (6 in) in circumference and printed chart. The following speeds and chart time bases are provided.
