Student Kymograph

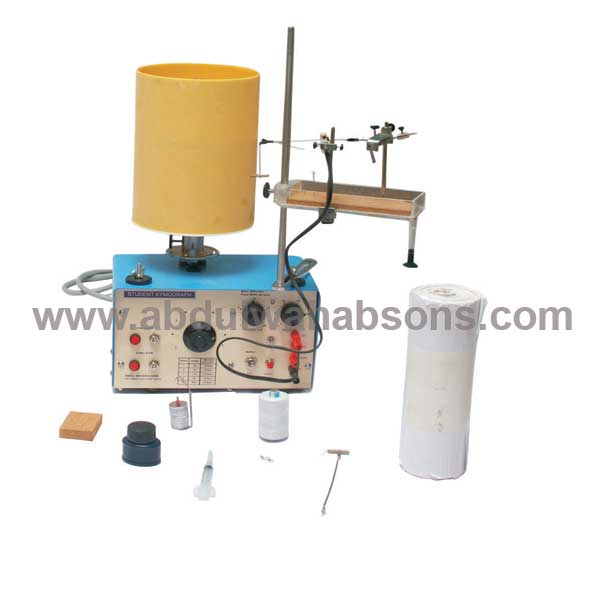

The AWS Student Kymograph is very reliable instrument for use in the study of physiology, pharmacology and Biological Science. There are two instrument model available and each is provided with a series of advance features. The instrument are available with or without stimulator. There is a range of accessories two suit most applications. Illustrated with the kymograph below is one suggested kit or assembly of the more popular accessories.

Download:Student Kymograph

Category: Physiology

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Student Kymograph”
