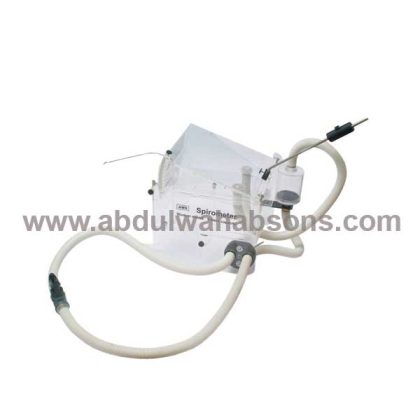

Student Spirometer

Related products

•

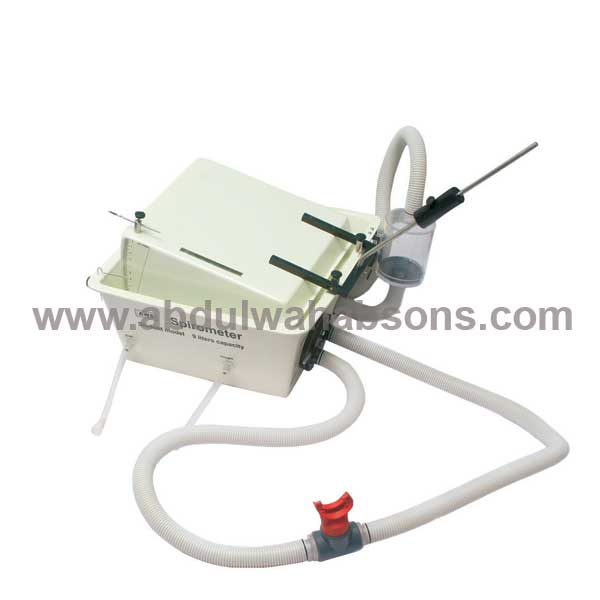

  Spirometer

  Add to wishlist

  Quick view

  Read more
•

  Stethograph

  The Stethograph is designed for recording human respiratory movement with a recording device such as a tambour or transducer.

  The corrugated rubber tubing is 200mm (8 inch) long and 35mm (13/8 inch) diameter. A nickel-plated chain 850mm (34 inch long, is secured at one end of the Stethograph, and may be secured at any point to a hook at the opposite end. In this manner the Stethograph may be placed in a convenient, yet unyielding, way on the subject.

  At one end of the Stethograph is riffled tube with an inside diameter of 3mm (1/8 inch), for connection to the tambour or the recoding device,

  8. Stethograph

  Stethograph and Tambour :

  The combination of these two items is used to record respiratory patterns, i.e rate, rhythm and amplitude during conditions :During * Talking

  * Swallowing

  * Speaking

  * After Walking

  * Breath Holding

  * Hyper Ventilation

  Use the Frontal Writing Point with Aluminum Stem and fixed the Kymograph Speed No: 3. and normal respiration, using two sets it is also possible to study chest and abdominal movements simultaneously under a variety of circumstance. (See drawing below).

  Download:Stethograph Manual AWS

  Add to wishlist

  Quick view

  Read more
•

  Student Kymograph 2

  The AWS Student Kymograph is very reliable instrument for use in the study of physiology, pharmacology and Biological Science. There are two instrument model available and each is provided with a series of advance features. The instrument are available with or without stimulator. There is a range of accessories two suit most applications. Illustrated with the kymograph below is one suggested kit or assembly of the more popular accessories.

  Download:Student Kymograph (2)

  Add to wishlist

  Quick view

  Read more
•

  Vitalograph ALPHA Touch

  The new generation Vitalograph ALPHA Touch is an easy to use, lightweight desktop spirometer that offers the benefits of portability, data integration and a built in printer. The ALPHA Touch features a precise and robust Fleisch pneumotachograph and a simple icon driven menu, plus a large, high resolution colour touch-screen and storage capacity for 10,000 subjects.
  Manual entry of subject data is optional as ALPHA Touch automatically copies all subject data from Spirotrac – saving time and eliminating data entry errors.

  Downlaod: Alpha TOUCH
