The AWS Student Kymograph is very reliable instrument for use in the study of physiology, pharmacology and Biological Science. There are two instrument model available and each is provided with a series of advance features. The instrument are available with or without stimulator. There is a range of accessories two suit most applications. Illustrated with the kymograph below is one suggested kit or assembly of the more popular accessories.

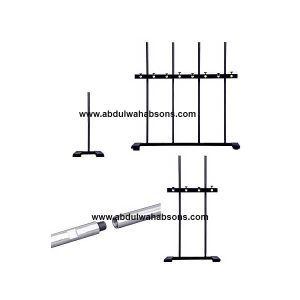

Designed for durability and flexibility, these Lab Stands are ideal for the lab bench. The heavy duty, steel base designs provide ballast while the stainless steel support rods, available in multiple lengths in increments of 12” length rods, provide strength and durability.
Product: ALPHA Spirometer Model No: 6000 Size: 300 x 250 x 75mm Weight: 2kg net Parameters Measured: Varies by country variant Operating Temperature Range: ATS/ERS Limits: 17 – 37°C Design Limits: 10 – 40°C Voltage/Frequency: 110-250V~50/60Hz Flow Detection Principle: Fleisch type pneumotachograph Volume Detection: Flow integration sampling @ 100Hz Accuracy when Operated in Operating Temperature Range Conditions: Flow +/- from 10% to 5% Max flow rate +/-16L/s Min flow rate +/-0.02L/s Volume Accuracy: Better than +/-3% Maximum Displayed Volume: 10 L
Maximum Test Duration: 90 seconds Flow Impedance: <0.1kPa/L/s @ 14L/s Complies with ATS/ERS 2005 Printer: Thermal Performance Standards: ATS/ERS 2005 & ISO 26782:2009, ISO 23747:2007 Safety Standards: IEC 60601-1:2005 Medical Safety Standard: Medical Devices Directive 93/42/EEC as amended Designed & Manufactured Under: ISO 13485:2003, FDA 21CFR820, CMDR Communications: USB and Compact Flash
Download: ALPHA

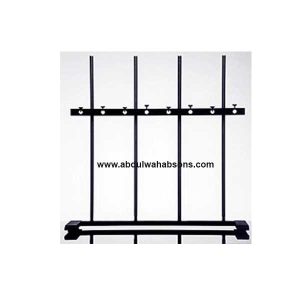

Designed for durability and flexibility, these Lab Stands are ideal for the lab bench. The heavy duty, steel base designs provide ballast while the stainless steel support rods, available in multiple lengths in increments of 12” length rods, provide strength and durability.
The new generation Vitalograph ALPHA Touch is an easy to use, lightweight desktop spirometer that offers the benefits of portability, data integration and a built in printer. The ALPHA Touch features a precise and robust Fleisch pneumotachograph and a simple icon driven menu, plus a large, high resolution colour touch-screen and storage capacity for 10,000 subjects.
Manual entry of subject data is optional as ALPHA Touch automatically copies all subject data from Spirotrac – saving time and eliminating data entry errors.

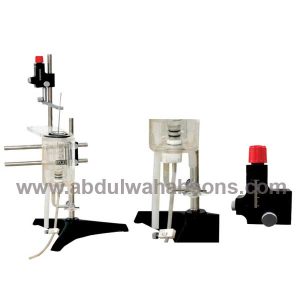

AWS provides complete hardware solutions and associated software for isolated tissues studies from simple, manual systems to automated, computer-controlled systems. The AWS Modular Single Chamber Organ Bath was developed to provide a practical and functional design. They are used basically in teaching, where their low demanding maintenance, ruggedness and ease of use guarantee excellent didactic performance. This Modular option consists of a Perspex organ bath with a tissue chamber, three-way stopcock for physiological solution exchange and a fine needle valve for gas regulation. To maintain a constant temperature in the tissue chamber a Thermo regulated Water Pump is available which can be used with up to four Single Chamber Organ Baths at once. All organ baths include tissue holders, transducer holders, Micropostioner and tissue chambers (25 ml volume is supplied standard; 5, 10, or 50 ml volumes are available on request). Optionally, the AWS Modular Organ Baths can be associated with transducers, amplifiers and data output software from several brands. Common configurations use AD Instrument LABCHART or PANLAB PROTOWIN software for data storage and analysis, including Dose/Response.

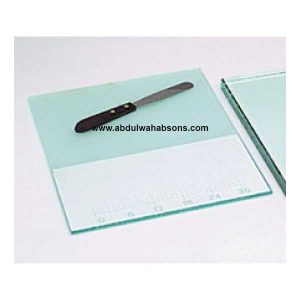

Ointment slabs 12″x12″in minimum 8mm thickness Heavy weight glass squares provide a hard nonporous surface for incorporating compounds into ointment bases. The roughened bottom minimizes movement. Smooth beveled edges resist chipping and make handling easier.

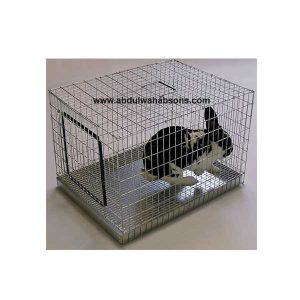

Portable rabbit cage with decent look Main frame of the cage made of stainless steel wire. Tray made of 24 Gauge stainless steel. Removable stainless steel tray. Durable S.S tray easy to clean. Open design for visibility Cage door has a fixed.

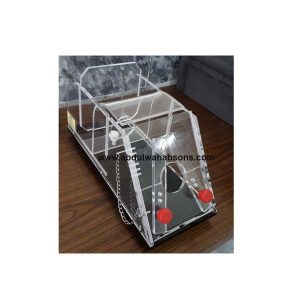

This restrainer can be used with the help of curved back acrylic plate. This curved plate has a slider at bottom which can slide in the bottom sliders on restrainers according to animal size. Height and length are adjusted using only one plate. Neck can be adjustable by sliding the front top plate and fixing it in the comfortable position neck slot. The floor os restrainer is specially made rough to avoid skidding.

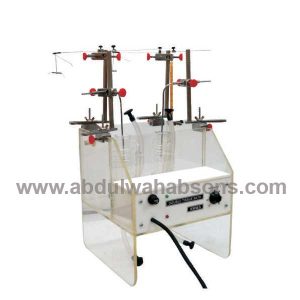

The walls of this bath are made of heavy, transparent plastic, so that the specimen can be
consultant and easily observed. The walls are 6mm thick. The tank measureThe two sides of the bath are extended to form a stand. The heating control housing is made of white plastic, offering the double advantage of being corrosion proof and an excellent electrical insulator from the heater.
