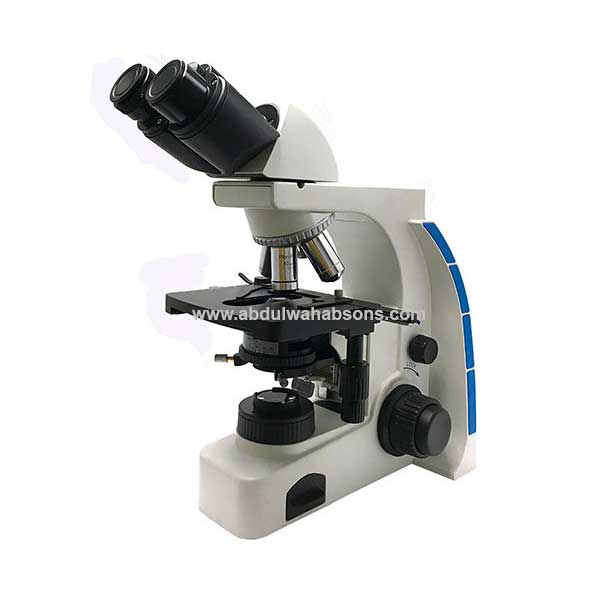

Binocular Microscope Europen Standard

  1. Infinity Independent Achromatic Optical System

2.WF10x Plan Eyepieces, 18mm Field of View, High Eye Point up to 21mm

3.Seidentopf Binocular/Trinocular Viewing Head, Inclined 30º, Rotatable 360º

4.Light Distribution: Binocular 100% or Binocular/Trinocular 20%/80%

5.48-75mm Interpupillary Distance Settings

6.±5 Diopter Adjustment

7.Quadruple Nosepiece Inward Facing with Positive Click Stops

8.Infinity Plan Achromatic 4x, 10x, 40x(S) and 100x (S/Oil) Objectives

9.Right Hand Controls, Low Position, Mechanical Stage, 156mm x 138mm, Movement Range 76mm x 54mm

10.N.A. 1.25 Abbe Condenser With Iris Diaphragm, With Phase-Contrast Socket

11.Coaxial Coarse and Fine Focus Mechanism with Markings on Fine Focus Knobs. Fine Focus Sensitivity 0.001mm

12.6v 20w Halogen Illumination, 110-240V Wide Voltage

13.Dust Cover, Clear Blue Filter, Power Cord, Immersion Oil.
