Tissue Organ Bath Components Set

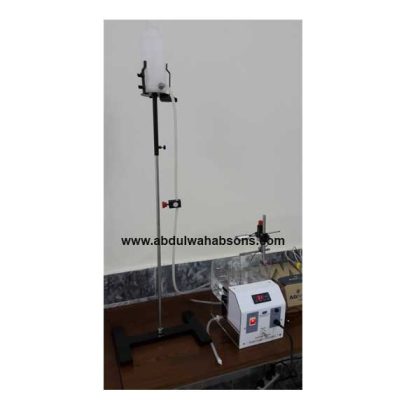

This heavy stand will solidly support the most elaborate assembly. The base measures 150 x 200mm(6 x 8 in), and is finished in tough, durable, smooth white nylon that is easy to keep clean. The base has a brass shoulder to take the upright. This shoulder is located at the center of the base to avoid imbalancing. The upright, which is locked in place with an Allen set crew, is made of stainless steel 12.5 (½ in) in diameter and 720mm (28 in) long. The entire stand weight 5.5kg (12lb) aprox., with base color Black/Red..

Download:Tissue Organ Bath Components Set

Category: Pharmacology

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Tissue Organ Bath Components Set”

Related products

Rectus Muscle Apparatus

Rectus Muscle Apparatus

*Tissue Bath Pyrex Glass

*Laboratory Stand with stainless steel rod.

*Simple light aluminum lever with ink writing frontal point

*Silicon Tube for Tissue Bath

*Boss Head brass

*Tissue Bath holding clump with boss head

*Stopcock Teflon

Download: Rectus Muscle Apparatus

Read more
Student Single Tissue Bath

Capacity: 3.6 Liter with decent look

Heaters 120 Watts

A float switch provides a safety cut off should the water level fall

below the minimum permitted level,

Two modes for solution replacement emptying and filling

Each tissue chamber has an adjustable gas diffuser for oxygenation and

push toggle on the front of the unit control the filling and emptying of the

tissue chambers via toggle switch.

Perspex sheet wall thickness 8mm

Magnetic Stirrer for uniform temperature

The control system provides an LED display

Inner Tissue Bath Standard 25ml Capacity Qty 1 with each Bath

Detachable Stem Tissue Vessel, supplied as standard,

for increased convenience when changing tissue vessels.

(The tissue chamber portion of the tissue vessel can be removed

without disturbing the stem or disconnecting the tubing for the warmed

perfusate and drainage.

Inner tissue bath Pyrex Material Graduated 25 ml Capacity

O ring provide 2 set

Warming Coil Round/Curve flat type

Power: 220 Voltages

Download:Student Single Tissue Bath

Read more
Organ Bath Modular-Teaching

AWS provides complete hardware solutions and associated software for isolated tissues studies from simple, manual systems to automated, computer-controlled systems. The AWS Modular Single Chamber Organ Bath was developed to provide a practical and functional design. They are used basically in teaching, where their low demanding maintenance, ruggedness and ease of use guarantee excellent didactic performance. This Modular option consists of a Perspex organ bath with a tissue chamber, three-way stopcock for physiological solution exchange and a fine needle valve for gas regulation. To maintain a constant temperature in the tissue chamber a Thermo regulated Water Pump is available which can be used with up to four Single Chamber Organ Baths at once. All organ baths include tissue holders, transducer holders, Micropostioner and tissue chambers (25 ml volume is supplied standard; 5, 10, or 50 ml volumes are available on request). Optionally, the AWS Modular Organ Baths can be associated with transducers, amplifiers and data output software from several brands. Common configurations use AD Instrument LABCHART or PANLAB PROTOWIN software for data storage and analysis, including Dose/Response.

Download:Organ Bath Modular-Teaching

Read more
Double Tissue Bath

The walls of this bath are made of heavy, transparent plastic, so that the specimen can be consultant and easily observed. The walls are 6mm (1/4 inch) thick. The tank measure 140 x 215 x 155mm ( 51/2 x 81/2 x 61/4 ) and has a capacity of 4.7 liters.

The two sides of the bath are extended to form a stand. The heating control housing is made of white plastic, offering the double advantage of being corrosion proof and an excellent electrical insulator from the heater.

A drain hole with tubing and plug is located in the tank bottom and an overflow pope is mounted in the upper left edge of the tank, there is also tapered plastic cone in the tank bottom. Into which the soft rubber bung carrying the stem of the glass tissue bath fits, making a convenient leak proof joint. The water bath is heated by two simple, sturdy cartridge elements that are mounted through the fronts of the tank near the bottom and extend 50mm (2in) into it. These elements have a combined rating of 80 watts. The temperature of the water bath is controlled by a dial on the front panel that is graduated from 15 to 45 C, by 5 C increments. Inside the bath there is a metal tube that carries a sensitive thermostat sensing bead. This system maintains the bath within 0.5 C of the desired temperature once the bath temperature has stabilized. There is an indicator light in the front panel that glows when the bath is plugged into the AC line. There is also a second indicator light that glows whenever the heating circuit is energized. A screw-in fuse holder is also mounted on the front panel.

Download:Double Tissue Bath

Read more
