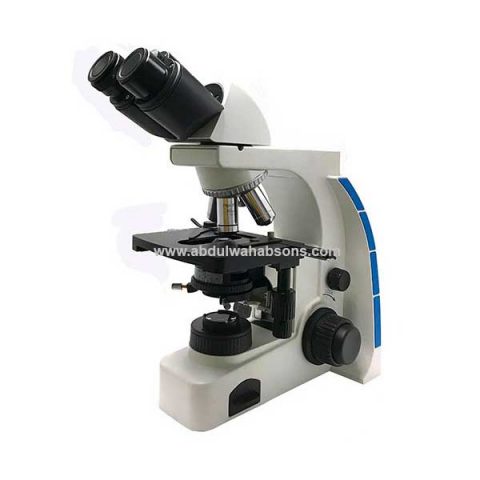

Olympus Microscope CX23
Model CX23LEDRF (S1/S2) Body Aluminum die-casting metal frame, Protective covering Optical System Infinity optical system Illumination System Built-in transmitted illumination system, LED Power Consumption 0.5 W (nominal values) Focusing Stage height movement (coarse movement stroke: 15 mm), coarse adjustment limit stopper, Torque adjustment for coarse adjustment knob, Fine focus knob (minimum adjustment gradations: 2.5 µm) Revolving Nosepiece Fixed quadruple nosepiece Stage Wire movement mechanical fixed stage Traveling range: 76 mm (X) x 30 mm (Y), Specimen holder, Specimen position scale Observation Tube 30º inclined binocular tube Interpupillary distance adjustment range: 48 – 75 mm, Eyepoint adjustment: 370.0 – 432.9 mm Objectives Plan achromat, anti-fungus 4x NA: 0.10 W.D.: 27.8 mm 10x NA: 0.25 W.D.: 8.0 mm 40x NA: 0.65 W.D.: 0.6 mm 100xOil NA: 1.25 W.D.: 0.13 mm (CX23LEDRFS1 only) Eyepiece (10x) Field Number (FN): 20 (anti-fungus) Optional Accessories Reflection mirror (CH20-MM), 15x eyepiece (WHSZ15X-H: FN 12, anti-fungus), Dedicated wooden case, Eyepiece micrometer,
Download:CX23
