Pharmacology Instruments

Related products

•

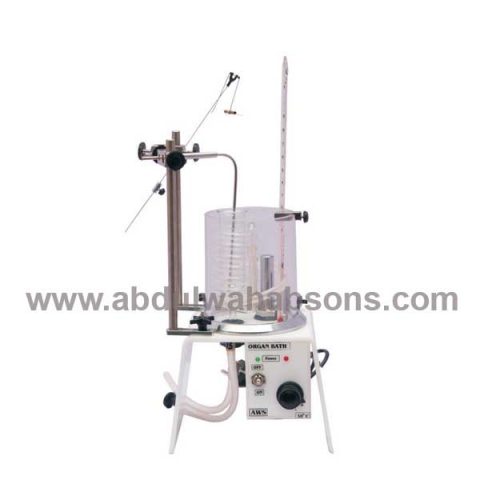

  Double Tissue Bath

  The walls of this bath are made of heavy, transparent plastic, so that the specimen can be consultant and easily observed. The walls are 6mm (1/4 inch) thick. The tank measure 140 x 215 x 155mm ( 51/2 x 81/2 x 61/4 ) and has a capacity of  4.7 liters.

  The two sides of the bath are extended to form a stand. The heating control housing is made of white plastic, offering the double advantage of being corrosion proof and an excellent electrical  insulator from the heater.

  A drain hole with tubing and plug is located in the tank bottom and an overflow pope is mounted in the upper left edge of the tank, there is also tapered plastic cone in the tank bottom. Into which the soft rubber bung carrying the stem of the glass tissue bath fits, making a convenient leak proof joint. The water bath is heated by two simple, sturdy cartridge elements that are mounted through the fronts of the tank near the bottom and extend 50mm (2in) into it. These elements have a combined rating of 80 watts. The temperature of the water bath is controlled by a dial on the front panel that is graduated from 15 to 45 C, by 5 C increments. Inside the bath there is a metal tube that carries a sensitive thermostat sensing bead. This system maintains the bath within 0.5 C of  the desired temperature  once the bath temperature has stabilized. There is an indicator light in the front panel that glows when the bath is plugged into the AC line. There is also a second indicator light that glows whenever the heating circuit is energized. A screw-in fuse holder is also mounted on the front panel.

  Download:Double Tissue Bath

  Add to wishlist

  Quick view

  Read more
•

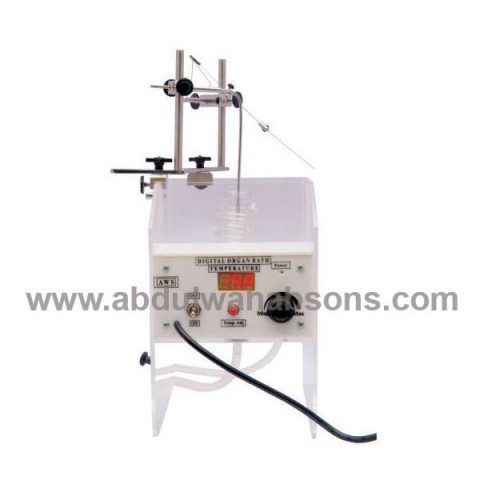

  Isolated Organ and Tissue 2

  This Heated Water Bath is for the most demanding research work.

  It has two heaters having 250 watts of combined power.

  The temperatur is automatically controlled by a sensitive thermistor

  in a metal tube inside the bat to hold the bath water

  temperature has stabilized. A magnetic stirrer in the bottom of the

  tank slowly circulates the water to ensue uniform temperature.

  These heaters are mounted through the front of the tank near the

  bottom and extend 100 mm (4 in) into it. The desired temperature of

  the Water Bath is set by a dial on the front panel that is graduated

  from 15o to 45o C in 5o increments.

  Two on/off switches and indicator lamps, one for power and the other

  for the magnetic stirrer are on the front panel.

  Download:Isolated Organ and Tissue 2

  Add to wishlist

  Quick view

  Read more
•

  Isolated Organ and Tissue 4

  Temperature automatically held within 0.5oC

  Dial graduated from 15o to 45oC in 5o increments

  Large 11.2 liter Water Bath capacity for stable temperature in

  Coils and Tissue Vessels

  Magnetic stirrer ensures uniform bath temperature

  250 watts off heating power for fast heat-up time

  Flat Warning Coils lie flat against the sides of the tank,

  leaving the center free for experimental procedures

  Large capacity (400 ml) Flat Perfusate Warming Coils en-sure

  a sufficient supply of temperature-controlled perfusate  for the

  mos lengthy assays

  Detachable Stem Tissue Vessel,

  supplied as standard, for increased convenience when changing

  Tissue Vessels (The without disturbing the stem or disconnecting

  the tubing for the warmed perfusate and drainage

  Downlaod:Isolated Organ and Tissue 4

  Add to wishlist

  Quick view

  Read more
•

  Basic Kymograph

  The AWS Student Kymograph is designed for general experimental work, and is solidly built to with stand constant, hard laboratory use. The AC operated motor turns the spindle at five fixed speeds, from “muscle twitch” of 625mm per second down to 0.05mm per second.



  Speeds: A dial on the front panel sets the gear box to one of five speeds. A “neutral” position, marked by an indicating dot between each of the speeds, protects the gear box. Using a cylinder 150mm (6 in) in circumference and printed chart. The following speeds and chart time bases are provided.

  Download:Basic Kymograph
